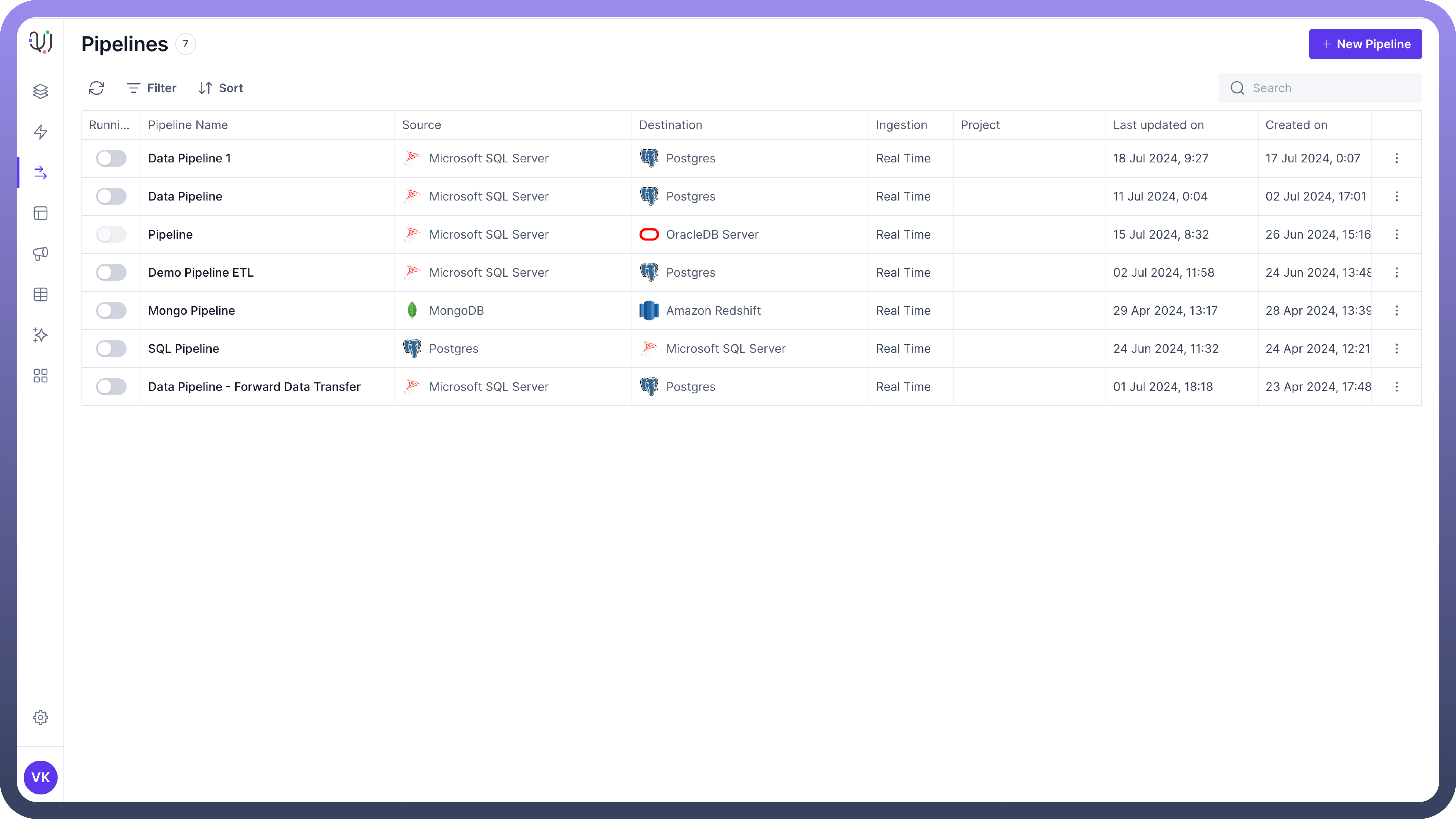

UnifyData is a data pipeline tool designed to simplify and streamline your data movement processes. It acts as a central hub for your data, connecting various sources and destinations to ensure smooth data flow across your systems.

Frame 427319210 (2).png
Frame 427319210 (2).png

Key Features

  1. Simplified Data Integration: You can connect and manage data with a wide range of data warehouses and databases such as :

    • Relational databases (e.g., MySQL, PostgreSQL, Oracle)

    • NoSQL databases (e.g., MongoDB, Cassandra)

    • Cloud storage (e.g., Amazon S3, Google Cloud Storage)

    • Business applications (e.g., Salesforce, Microsoft Dynamics)

    • Analytics platforms (e.g., Google Analytics, Adobe Analytics)

    • File-based systems (e.g., CSV, JSON, XML files)

  2. Real-time Data Synchronization: UnifyData uses CDC to efficiently replicate and synchronize data in real-time, ensuring that only new or modified data is processed. This reduces the load on your systems and ensures up-to-date information across all your data platforms.

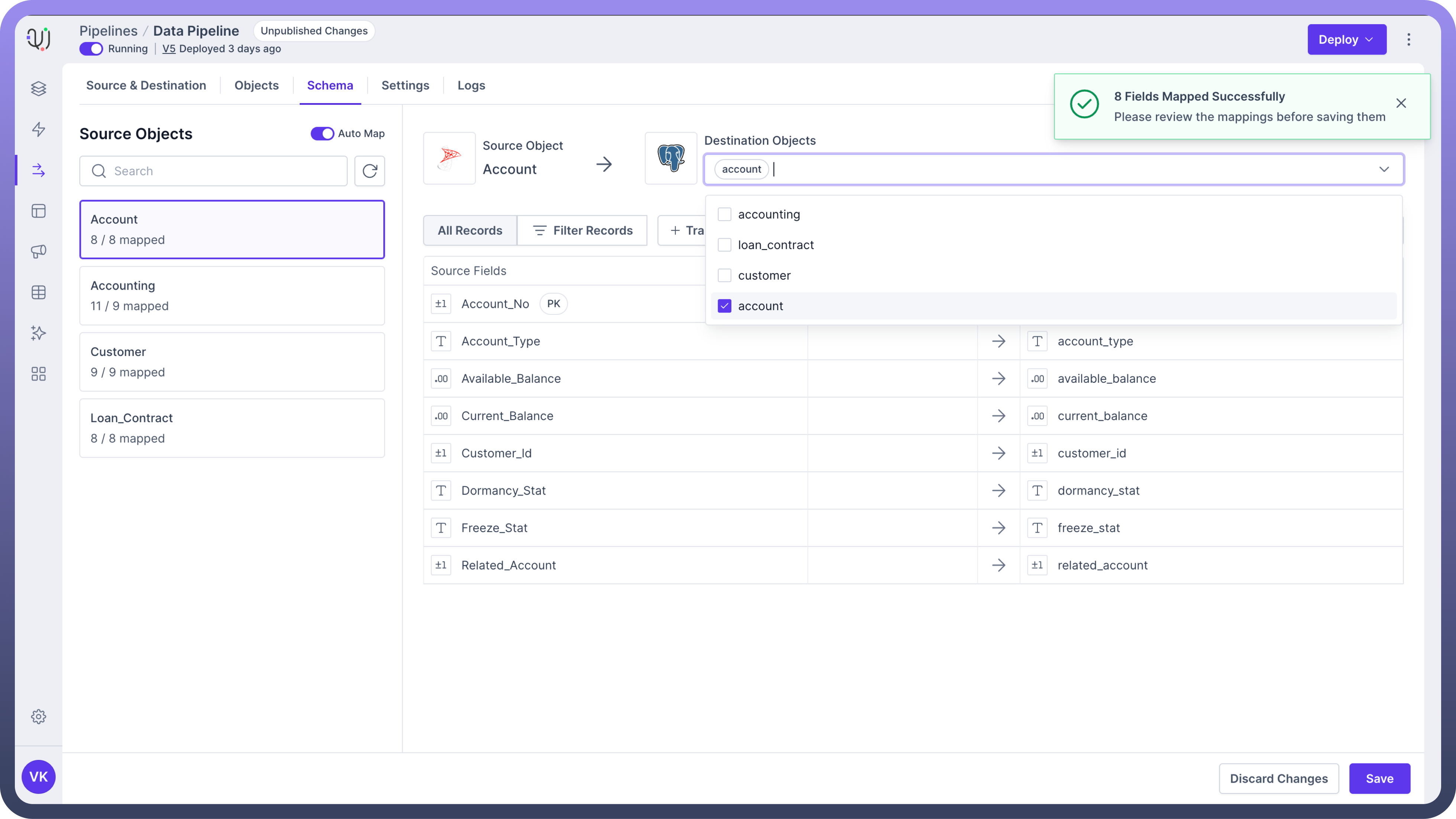

  3. Pre-built Transformations Suite: Transform your data using a wide range of ready-to-use data transformations and convert it into the desired format for your destination, saving significant time and effort in pipeline development.

    Frame 427319211 (3).png
    Frame 427319211 (3).png

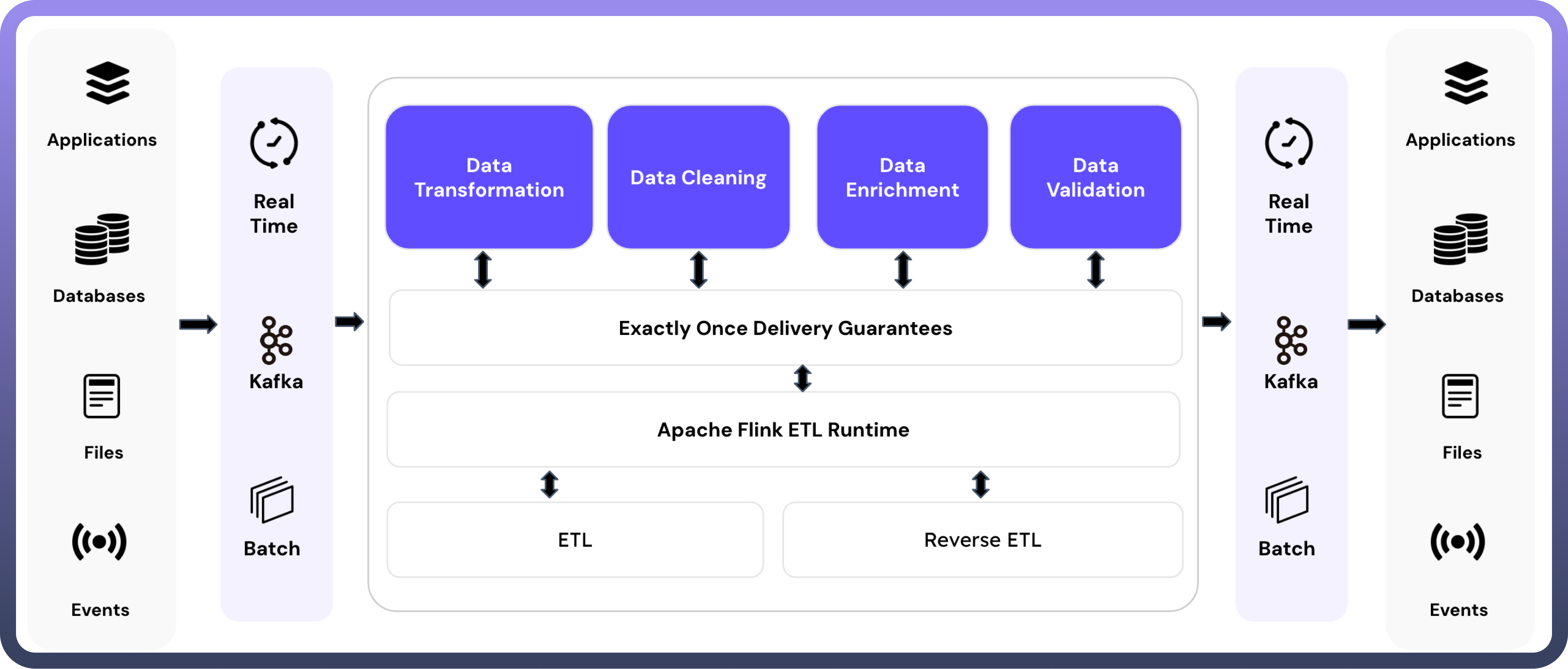

  4. ETL & Reverse ETL: UnifyData supports this by allowing you to extract data from your data warehouse or lake and load it into various business applications, enabling operational analytics and data-driven automations.

    Frame 427319209 (2).png
    Frame 427319209 (2).png

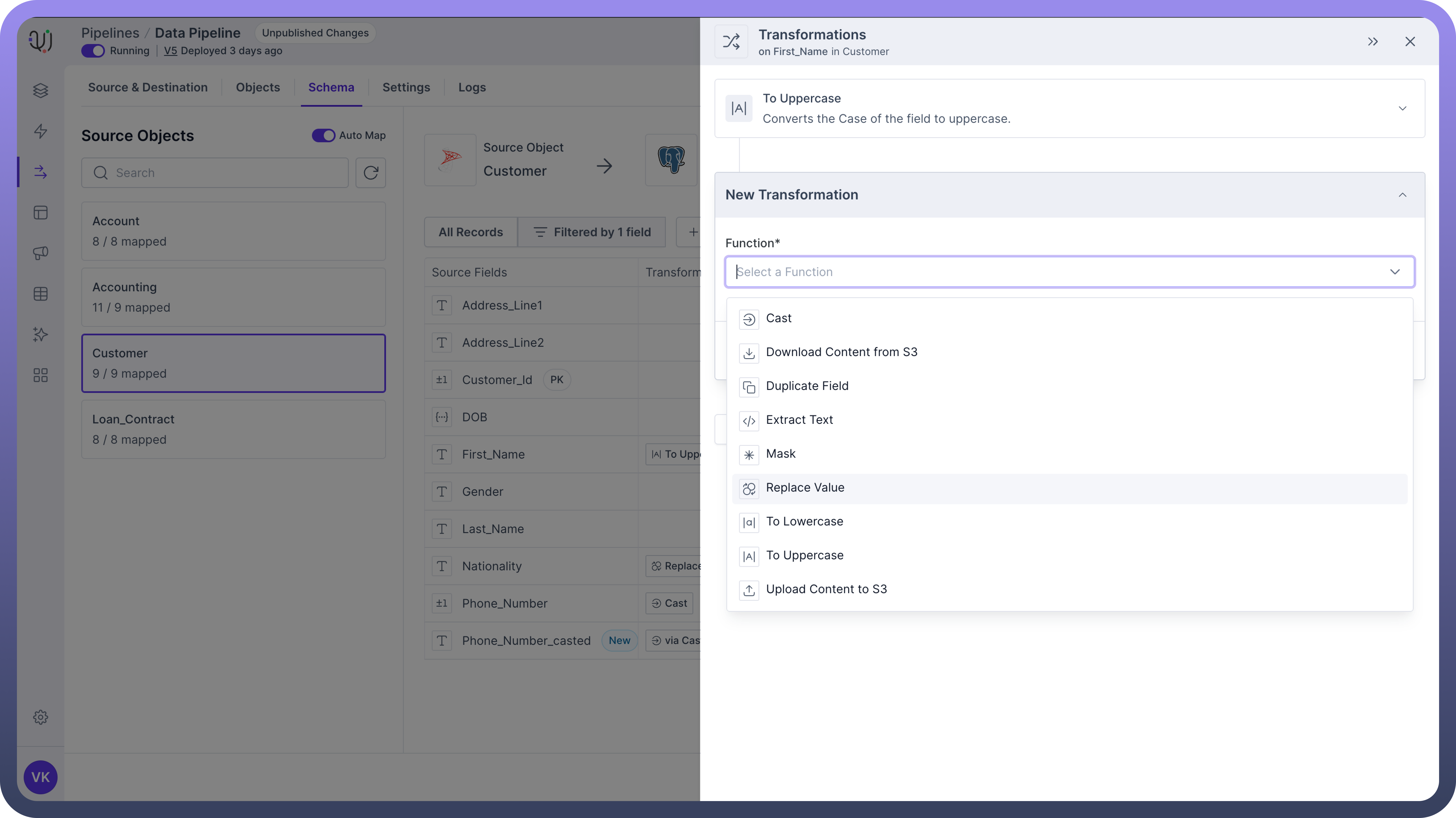

  5. Auto-Mapping: You can automatically map source field to its corresponding destination field, saving you from the hassle of manually mapping each field.

    Frame 427319211 (3).png
    Frame 427319211 (3).png

Building Blocks of a Data Pipeline

  1. Source Connector: It involves connecting source database/application to your pipeline to ingest data.

    Frame 427319209 (1).png
    Frame 427319209 (1).png

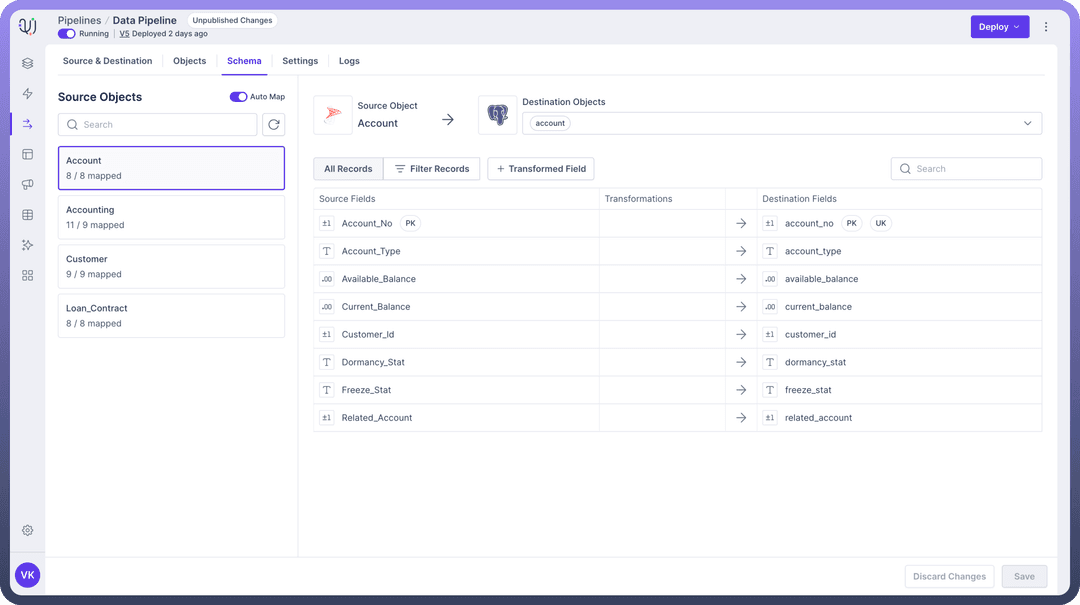

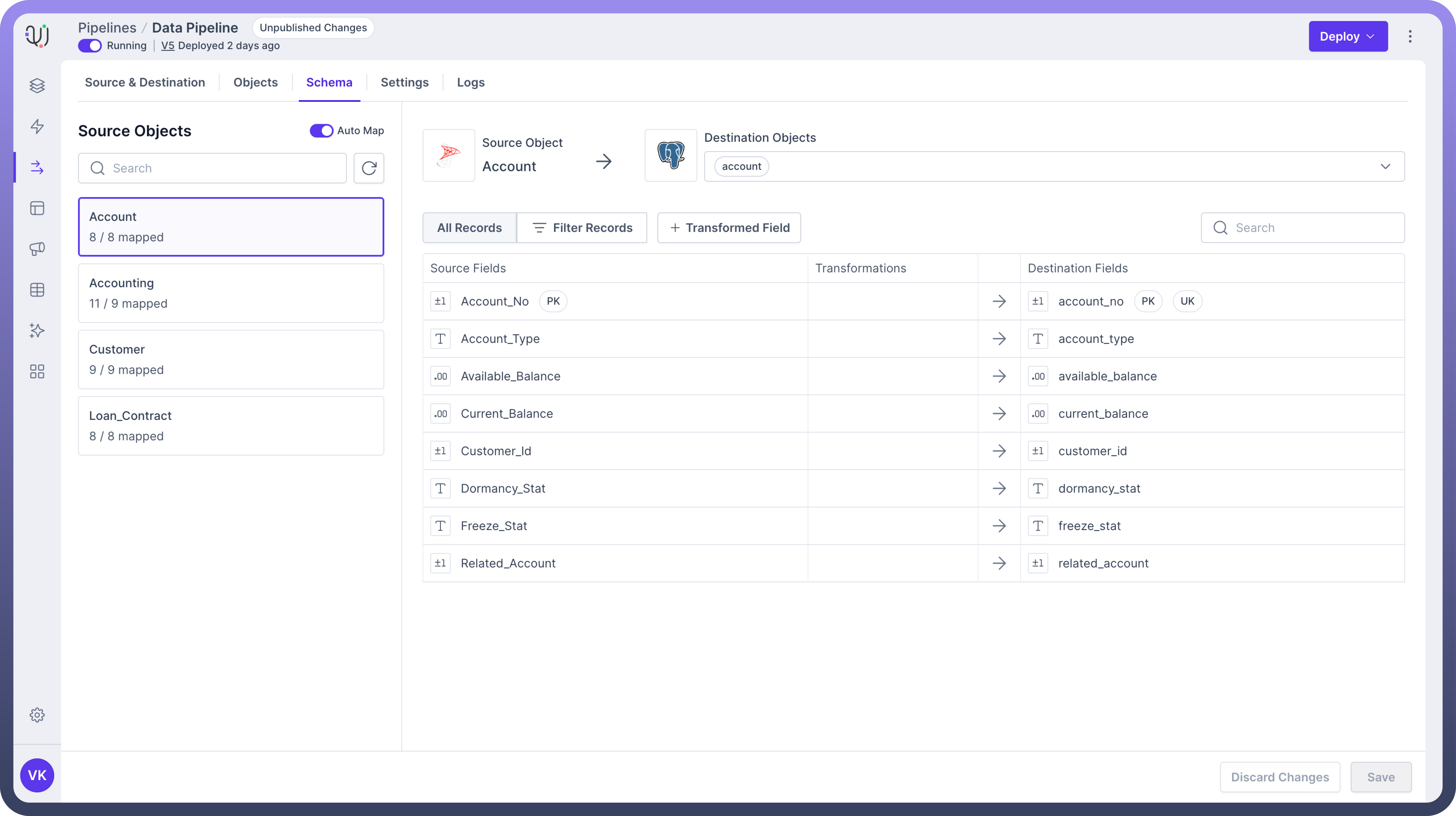

  2. Schema Mapping: It  allows mapping source objects with the destination objects to ensure efficient transfer of source data to the desired destination.

    Frame 427319214.png
    Frame 427319214.png

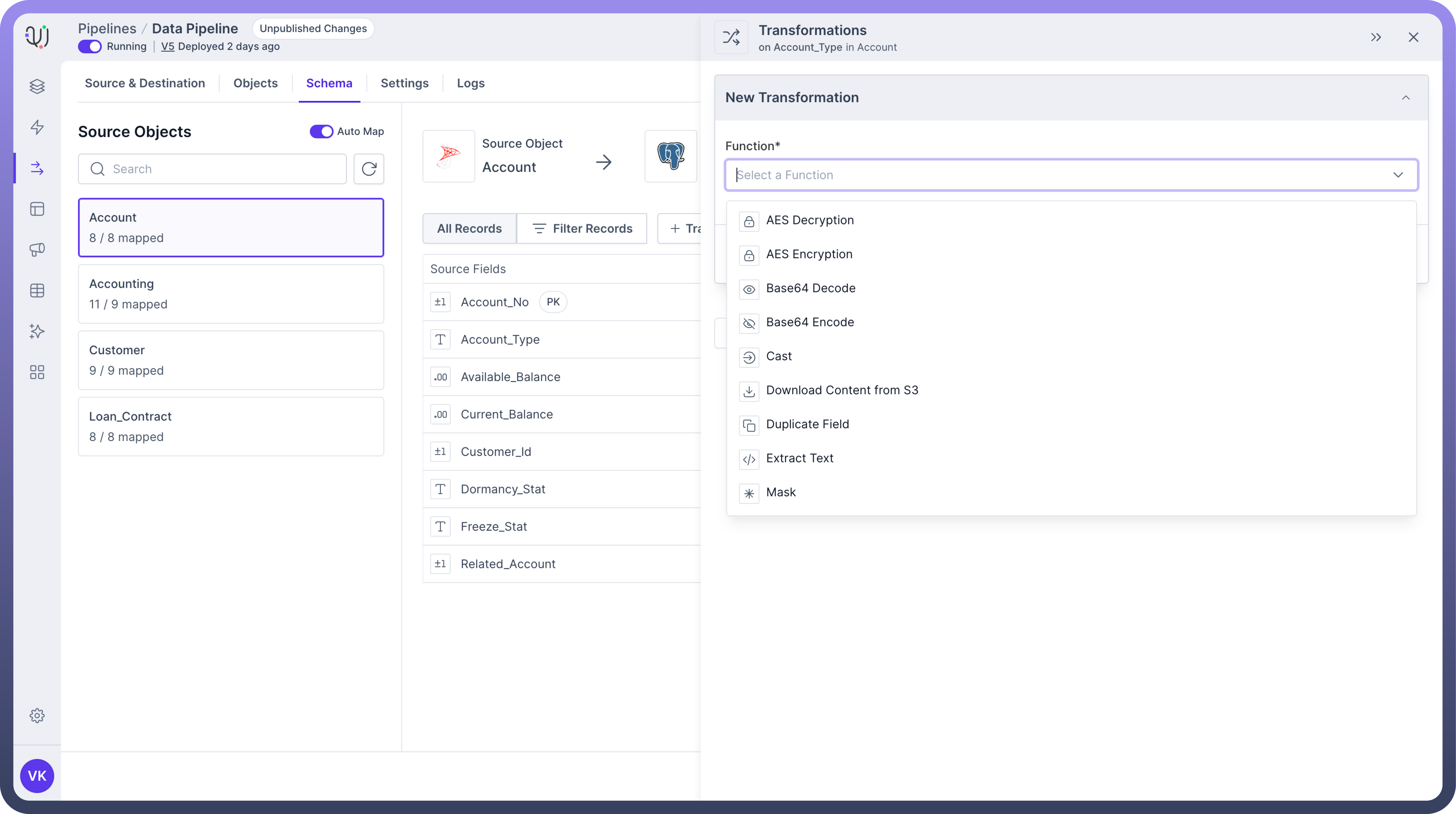

  3. Data Transformation: It acts as an intelligence layer between source and destination, which can help clean, restructure, or enrich the source data before loading it to the desired destination.

    Group 58 (2).png
    Group 58 (2).png

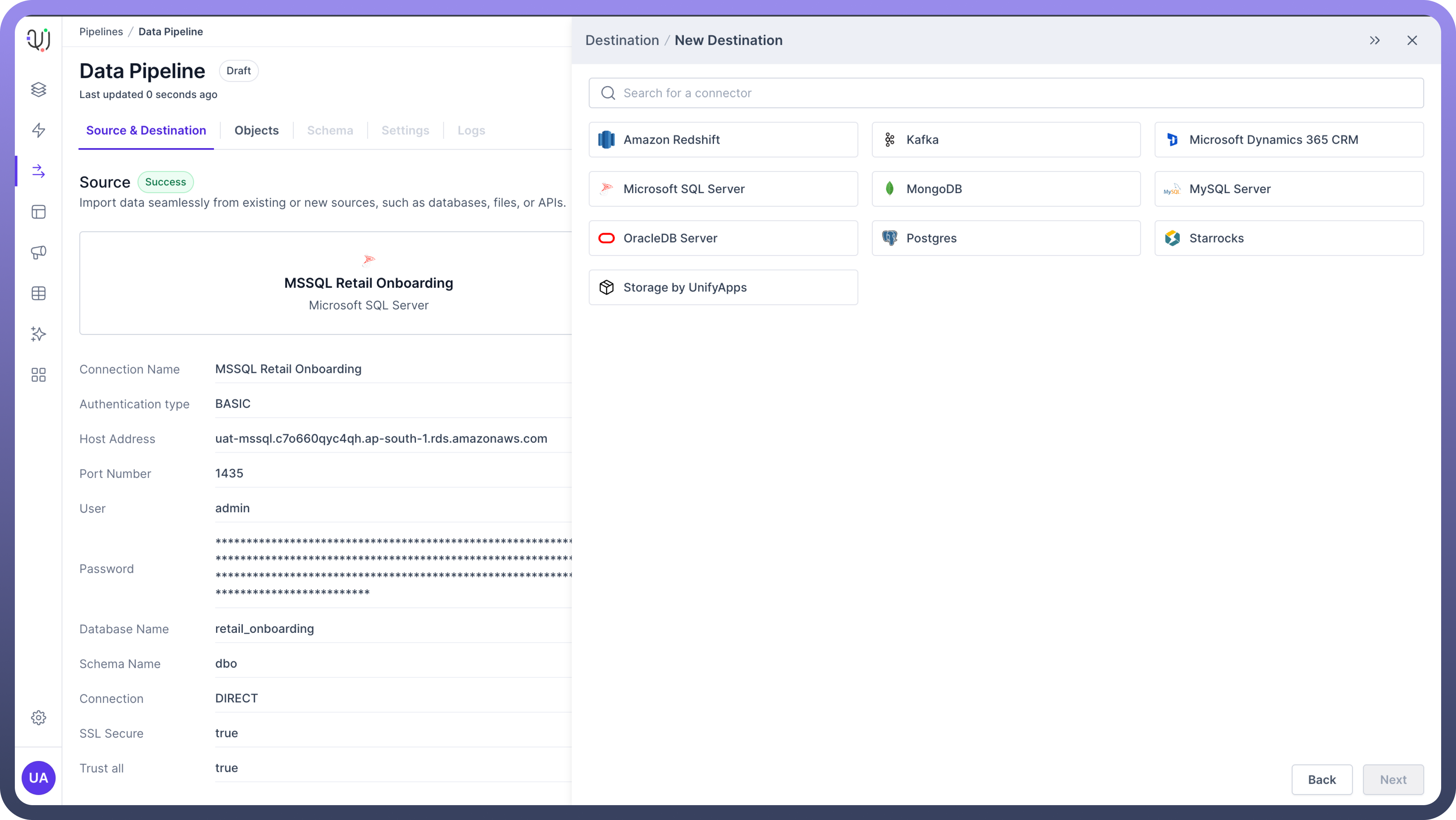

  4. Destination Connector: It involves connecting destination databases/application, such as Kafka and Starrocks, for the pipeline, where the data needs to be loaded.

    Frame 427319211 (5).png
    Frame 427319211 (5).png

FAQs

What is Change Data Capture (CDC) and how does UnifyData support it?

Change Data Capture (CDC) is a technology that tracks and captures changes in data as they occur in real-time. This ensures that any updates, inserts, or deletions in your source data are immediately reflected in the target systems, maintaining data consistency and integrity without manual intervention.

What is the use of pre-build transformations?

Pre-built transformations in UnifyData will allow you to quickly apply common data transformations without writing complex code. These ready-to-use functions can reformat, cleanse, and enrich data.

Does UnifyData support file based storages such as Amazon S3 as source for data pipeline ?

Yes. UnifyData supports such storages. You can add Amazon S3 as the source of the pipeline and respectively select the folders from which files have to be extracted for parsing and transferring data to the desired destination.
